Lathe Chuck Guard PTO 01

from £304.00

PUWER 98 Compliant Lathe Safety Guard – Highly Universal

  • TECNO PIU lathe safety guard, stocked here in the UK at Solon Systems Ltd.

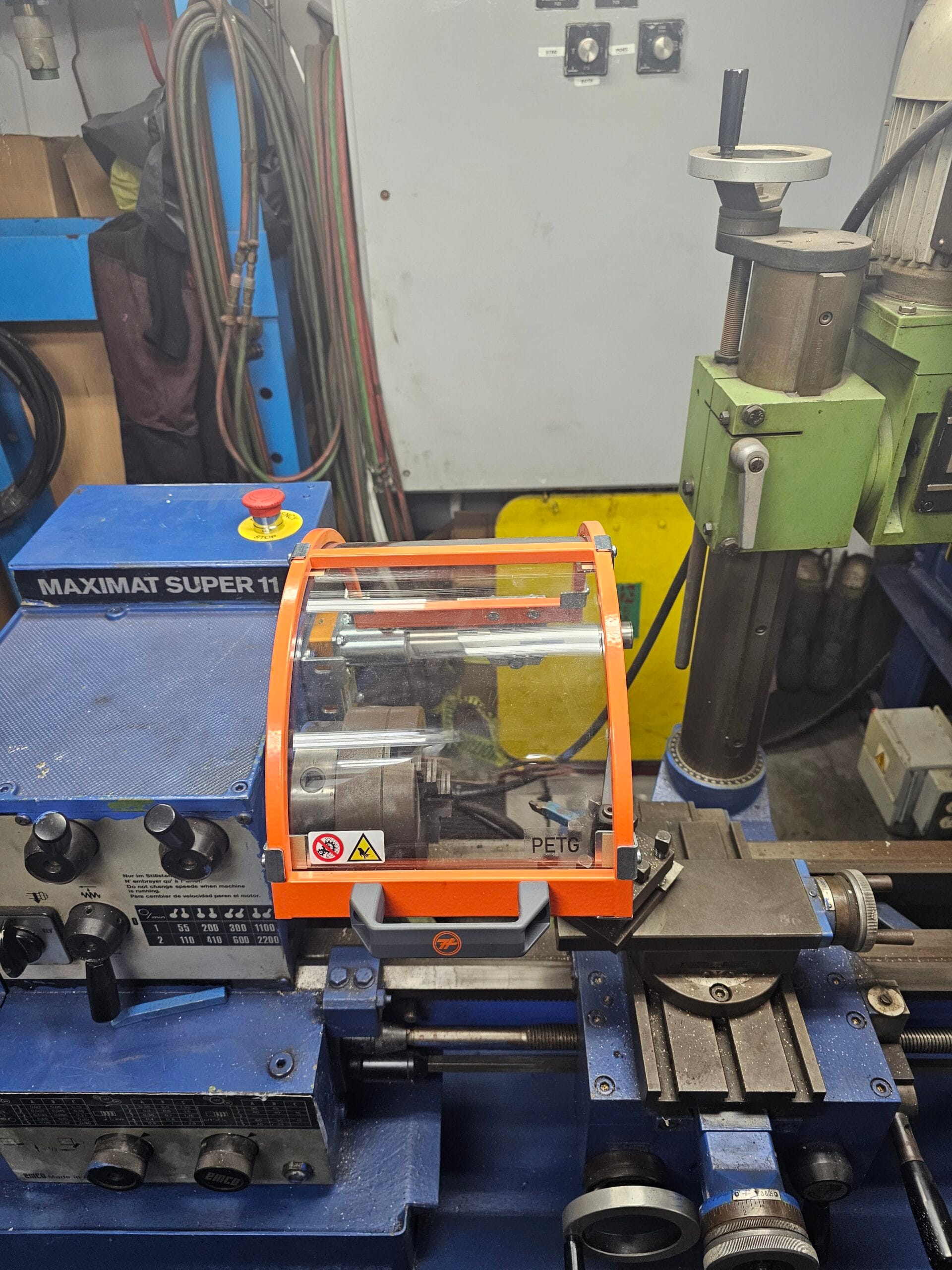

  • The PTO 01 lathe chuck guard protects the operator from contact with the upper part of the chuck and from coolant spray.
  • This lathe guard can be attached to the base from the front or the side.
  • Equipped with a steel and polycarbonate semi circular shield.
  • Top quality polycarbonate build ensuring resistance to high impact and excellent visibility.
  •  Adjustable for a close fit to the head stock.
  • Complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • This machine guards provides full operator safety without hindering productivity.
  • This machine guard comes with a certificate of conformity.
  • Compliant with P.U.W.E.R 98



Clear
Size Guide
We also accept telephone orders - all major credit & debit cards accepted

Description

Hinged and interlocked Lathe Chuck Guard for easy fitting to manual centre lathes.  These machine guards are sturdy, easy to adjust and fitted with transparent safety screen on steel frame.

  1. Frontal and lateral mounting bracket
  2. Safety microswitch main box – 90  rotation – N2 contact NC
  3. Shield connection clamp with support arm – in pressed steel
  4. Shield structure in tubular steel
  5. Thermo-shaped shield – in shockproof and oil-resistant plastic material


Lathe Chuck Guard PTO 01 Specifications

TYPEABCDPRICE
PTO 01/3003002001800-215£304.00
PTO 01/4004002352300-150£320.00
PTO 01/5005002352800-150£332.00
PTO 01/6006002353300-150£346.00
Downloads
  • Solon Systems Brochure-Flyer 2022
  • PTO 01 + PTO 02 Lathe Guard spec info

Delivery

This item is available for same day despatch, should we not be able to fulfil your order we will contact you immediately.
