Lathe Sliding Guard PTO 20

from £894.00



Clear
Size Guide
We also accept telephone orders - all major credit & debit cards accepted

Description

High quality & sturdy sliding headstock mounted Lathe chuck guard benefiting from easy operation & fitted with an integrated safety interlock switch. The viewing screens are transparent high impact strength polycarbonate. These popular Lathe machine guards protect the operator from entanglement with the rotating  chuck and from ejected parts such as swarf and cutting fluids. Easy to fit and normally available on short delivery times

  • Mounting brackets with wide vertical adjustment
  • Sliding mobile protection support carriage
  • Auto-carrying guide in extruded aluminium, with sliding system composed from tempered and rectified steel guides-bearings, placed in protected internal position.
  • Safety microswitch with separated actuator - n.2 NC contacts
  • Shield structure in tubular steel and aluminium
  • Shield in shockproof and oil-resistant plastic material, of great thickness

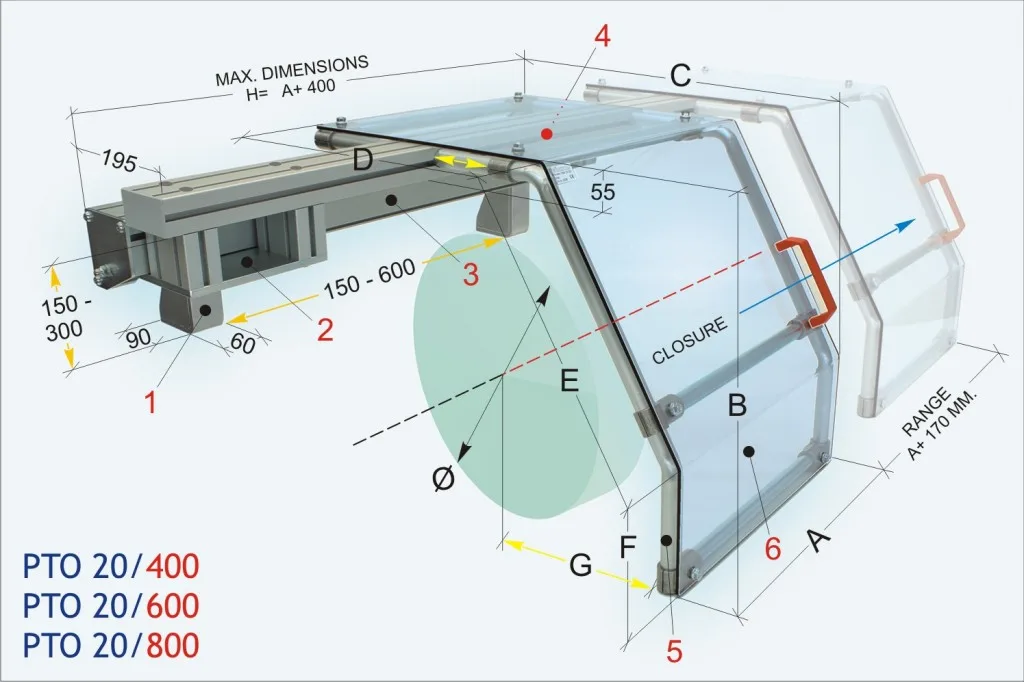

Lathe Sliding Guard PTO 20 Specifications

CODEØABCDEFGPRICE
PTO 20/400400-500450430655480350125280-540£894.00
PTO 20/600600-700450520855640430150320-740£941.00
PTO 20/800800-9004506401065800530180370-950£998.00
Lathe Sliding Guard PTO 20

Lathe Sliding Guard PTO 20 fits:



  • ACRA
  • Ajax
  • Binns & Berry
  • Broadbent
  • BSA
  • Churchill
  • Colchester
  • Doosan
  • DSG
  • Dugard
  • EMCO
  • Excel
  • Gate
  • Geminis
  • Gildemeister
  • HAAS
  • Hardinge
  • Harrisson
  • Herbert
  • Hyundai
  • Mazak
  • Mills
  • Mostana
  • Nakamura
  • Poreba
  • Smart & Brown
  • Swift
  • TOS
  • VDF
  • Waldrich Siegen
  • WARD
  • XYZ
Is your machine not listed? Contact us today.
Is your machine not listed? Don't worry, we can still source your guard. Either call us on 0121 603 1235 or click here to send us an enquiry.

Delivery

This item is available for same day despatch, should we not be able to fulfil your order we will contact you immediately.
