Milling Machine Guard PFR02

Milling Machine Guard PFR 02

from £740.00

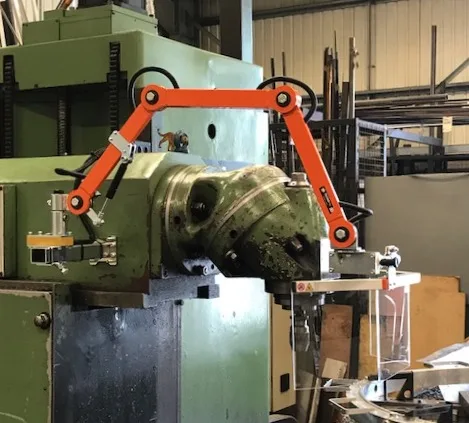

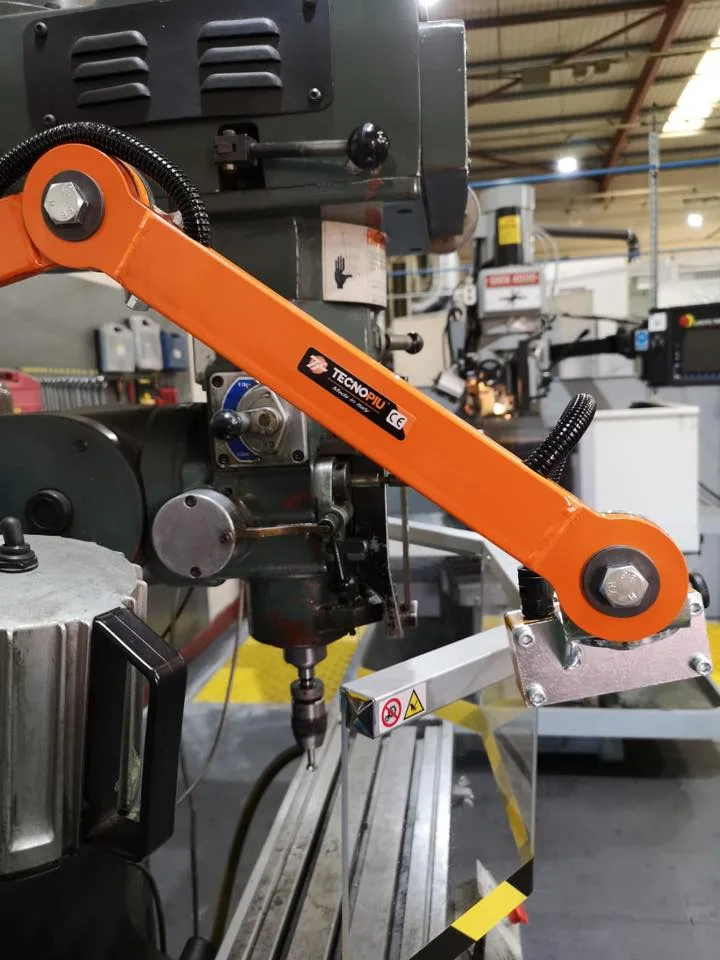

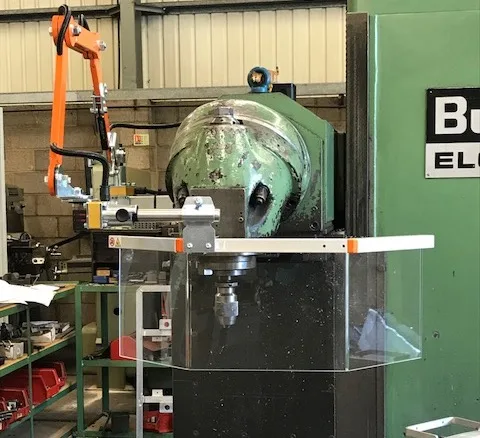

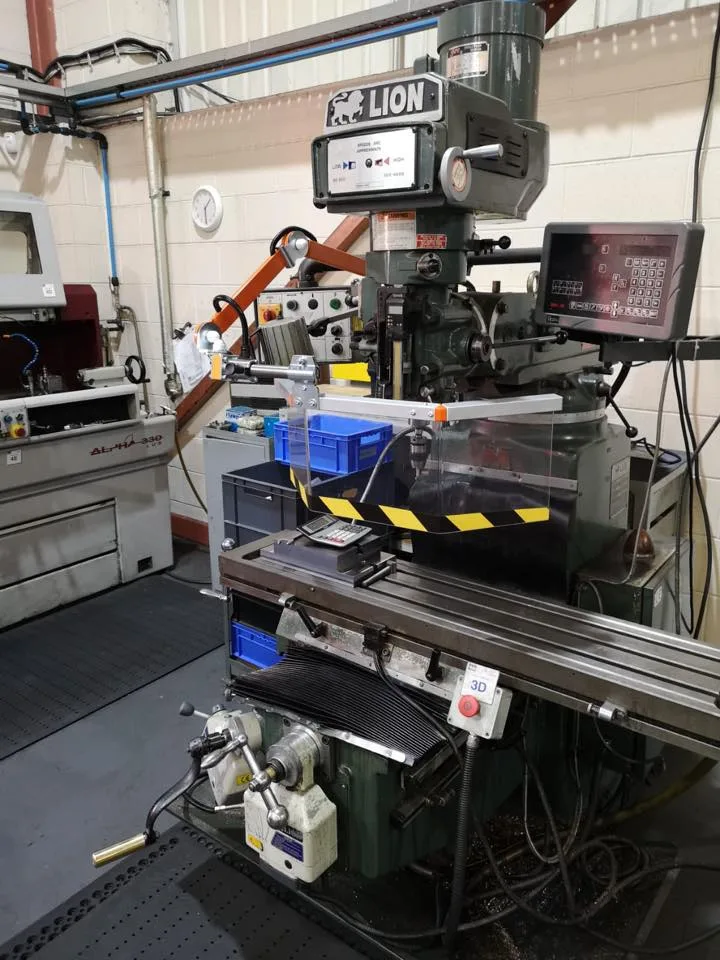

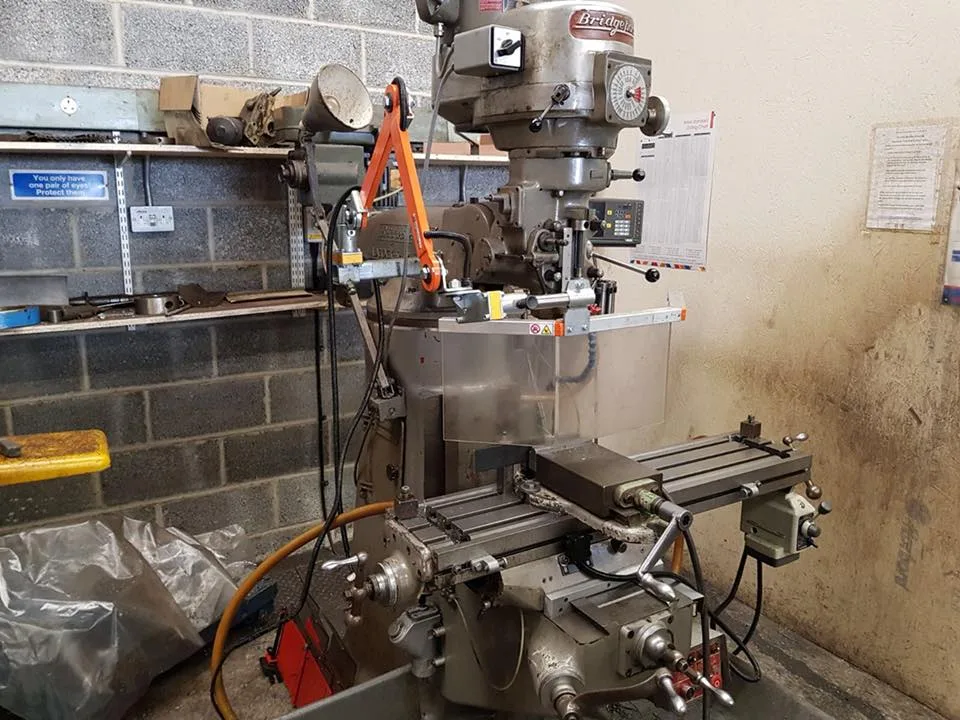

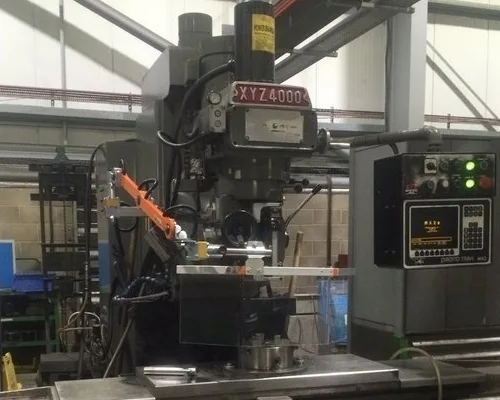

PUWER 98 Compliant Miller Guard – often used to guard Bridgeport Mills

  • Multi-adjustable features.
  • Wide visibility screen, made using PETG high quality polycarbonate ensuring resistance to high impact and offering excellent visibility.
  • The PFR 02 protects the operator from contact with rotating components and protruding debris and coolant.
  • The mounting arm allows the screen to be depth and height adjustable.
  • The PFR 02 has a dual opening system allowing the guard to either be lifted up or swung to the side when access to machine is required.
  • Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • This guard complies to P.U.W.E.R 1998
  • Easy installation.
  • Fast delivery (this guard is usually always in stock).

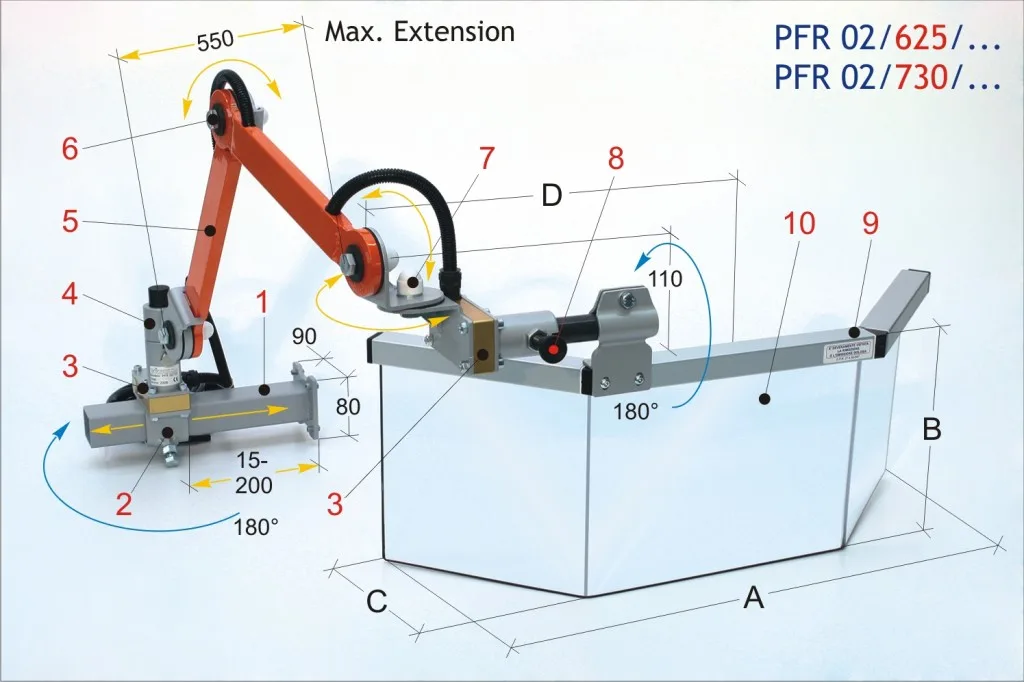

  1. Levelling mounting bracket – in tubular steel
  2. Depth adjustable safety guard support
  3. Safety microswitch main boxes – 180° rotation – n.2 NC contacts
  4. Horizontal adjustment clamp
  5. Articulated arms in tubular steel
  6. Friction joints
  7. Angular mounting point for the vertical turnover of the shield
  8. Shield opening unlocking knob
  9. Shield structure in aluminium profile
  10. Shield in plastic shockproof and oil resistant material
Clear
Size Guide
We also accept telephone orders - all major credit & debit cards accepted

Description

PUWER 98 Compliant Miller Guard - often used to guard Bridgeport Mills

  • Multi-adjustable features.
  • Wide visibility screen, made using PETG high quality polycarbonate ensuring resistance to high impact and offering excellent visibility.
  • The PFR 02 protects the operator from contact with rotating components and protruding debris and coolant.
  • The mounting arm allows the screen to be depth and height adjustable.
  • The PFR 02 has a dual opening system allowing the guard to either be lifted up or swung to the side when access to machine is required.
  • Comes complete with double safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • This guard complies to P.U.W.E.R 1998
  • Easy installation.
  • Fast delivery (this guard is usually always in stock).
  1. Levelling mounting bracket – in tubular steel
  2. Depth adjustable safety guard support
  3. Safety microswitch main boxes - 180° rotation – n.2 NC contacts
  4. Horizontal adjustment clamp
  5. Articulated arms in tubular steel
  6. Friction joints
  7. Angular mounting point for the vertical turnover of the shield
  8. Shield opening unlocking knob
  9. Shield structure in aluminium profile
  10. Shield in plastic shockproof and oil resistant material

Milling Machine Guard PFR 02 Specifications

CODEABCDPRICE
PFR 02/625620250170405£740.00
PFR 02/730725300200430£760.00
Downloads
  • PFR 02 Milling Machine Guard spec
    Download

Delivery

Most of our products are available for despatch within 2-3 working days.

Some products are non-stocked items and will be subject to a longer lead-time, in which case we will contact you.

If in doubt, please call our office and speak to Catherine or Emily on 0121 603 1235
