Drilling Machine Guard PTR 10-11

from £250.00

PUWER 98 Compliant drill guard for smaller drills

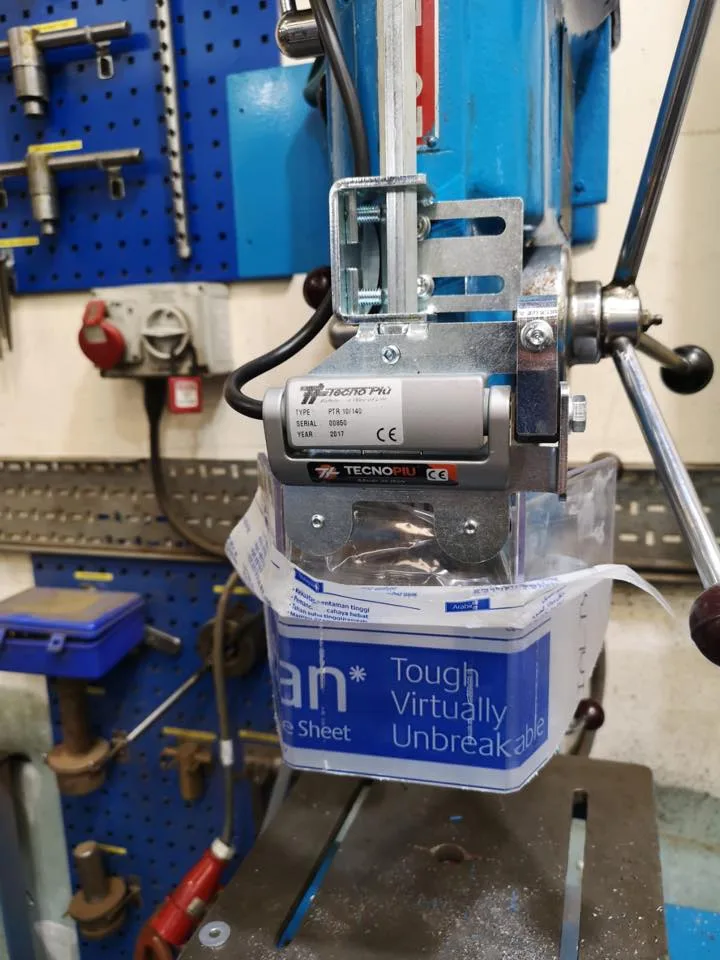

  • The PTR 10 and PTR 11 drill guard safeguard the machine operator from frontal contact with rotating parts and the projection of debris and coolant.
  • This is an operator friendly machine guard.

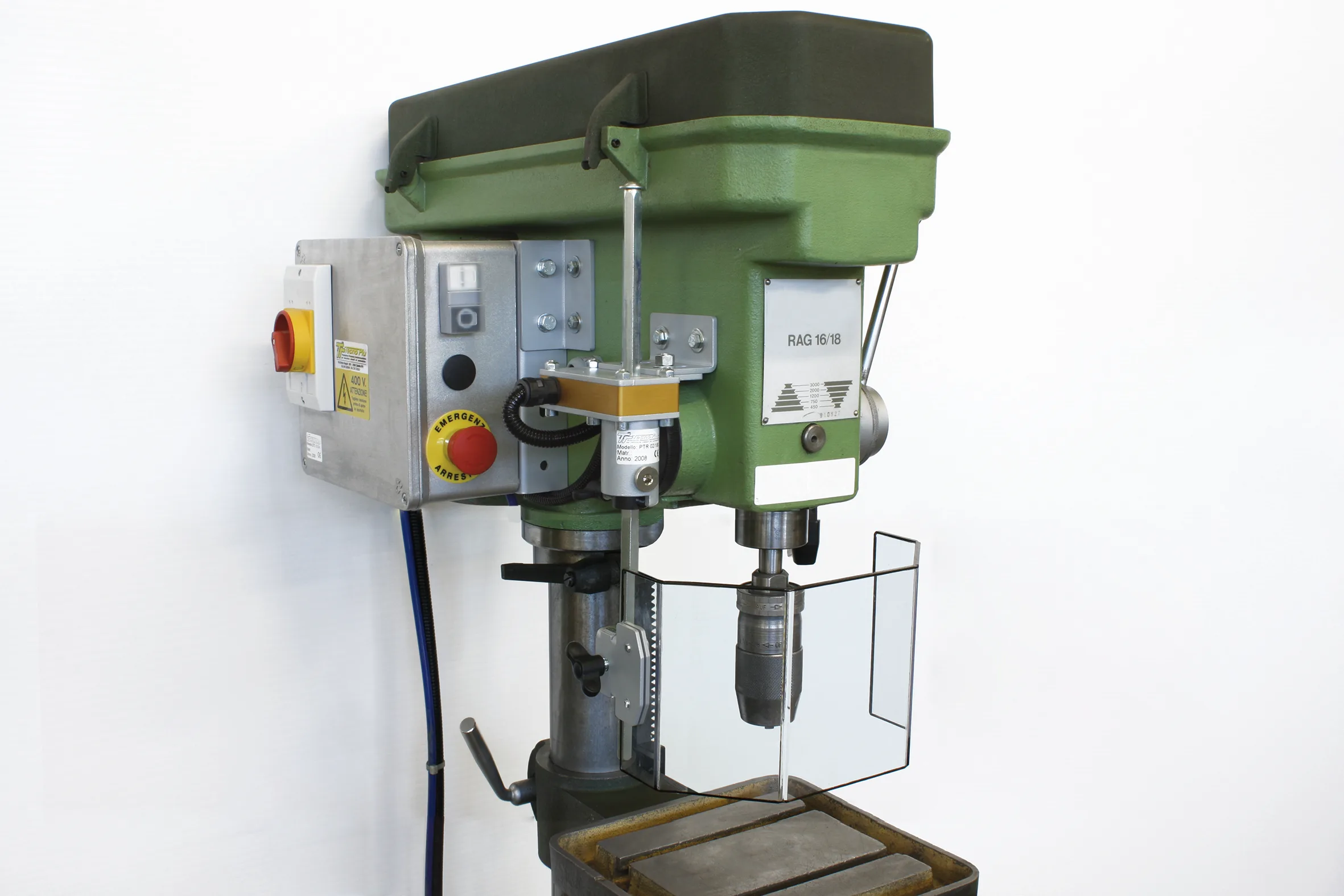

  • This drilling machine guard attaches to the front of the machine(see point 1 on Diagram).

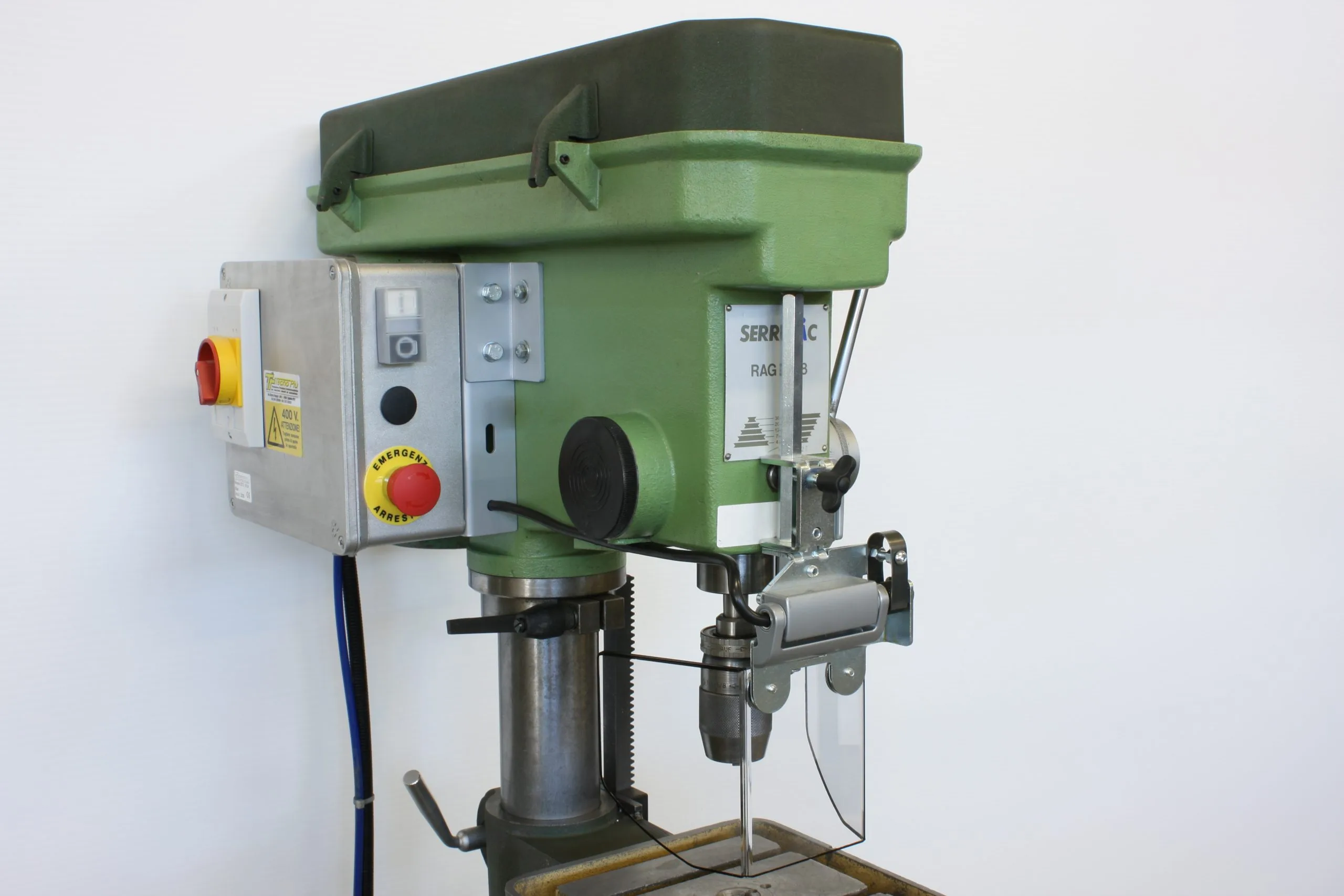

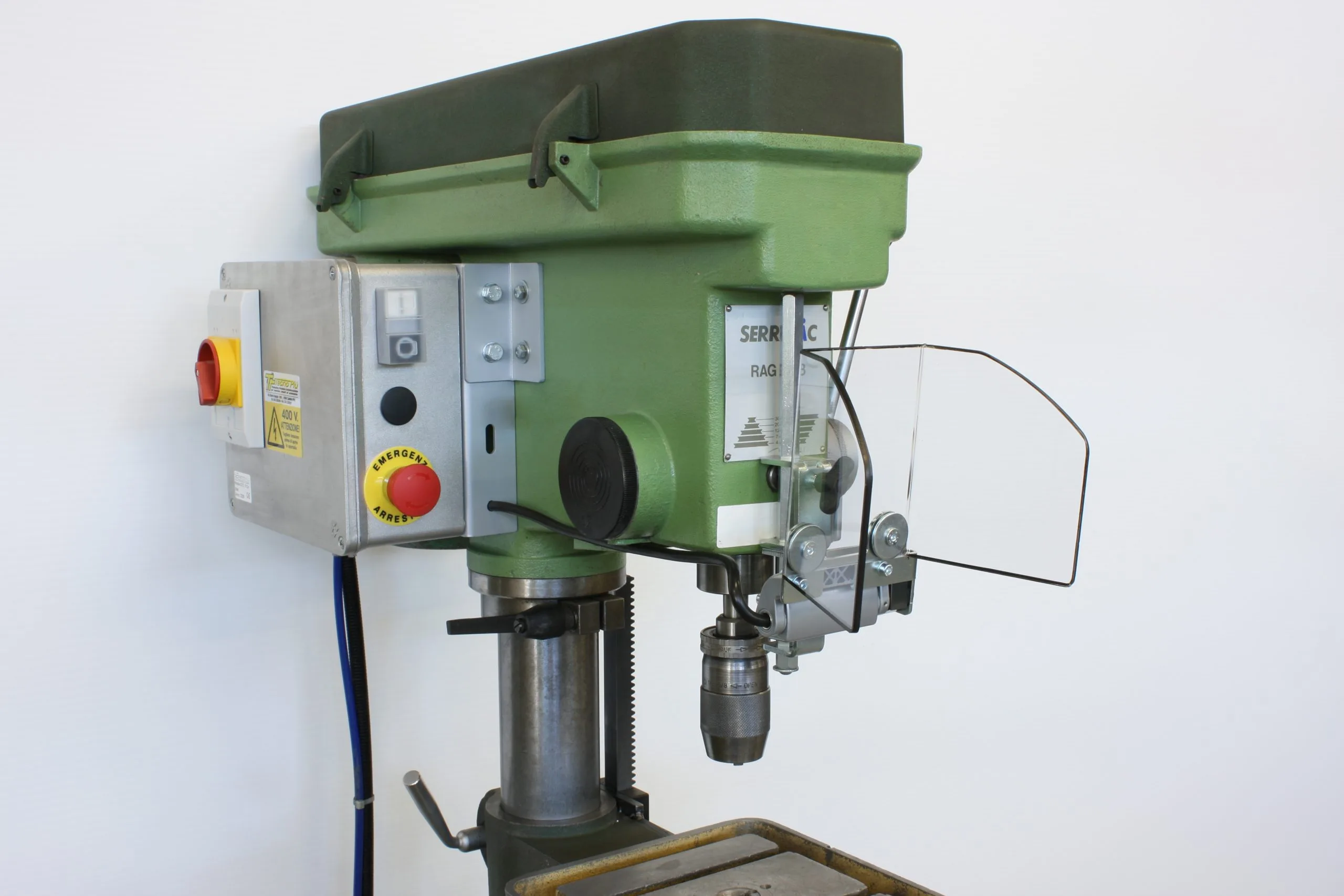

  • The screen is height adjustable and opens vertically. The screen is made using top quality polycarbonate ensuring “Shock proof” resistance and excellent visibility.
  • This drill safety guard arrives complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • PUWER 98 compliant drilling machine guard.

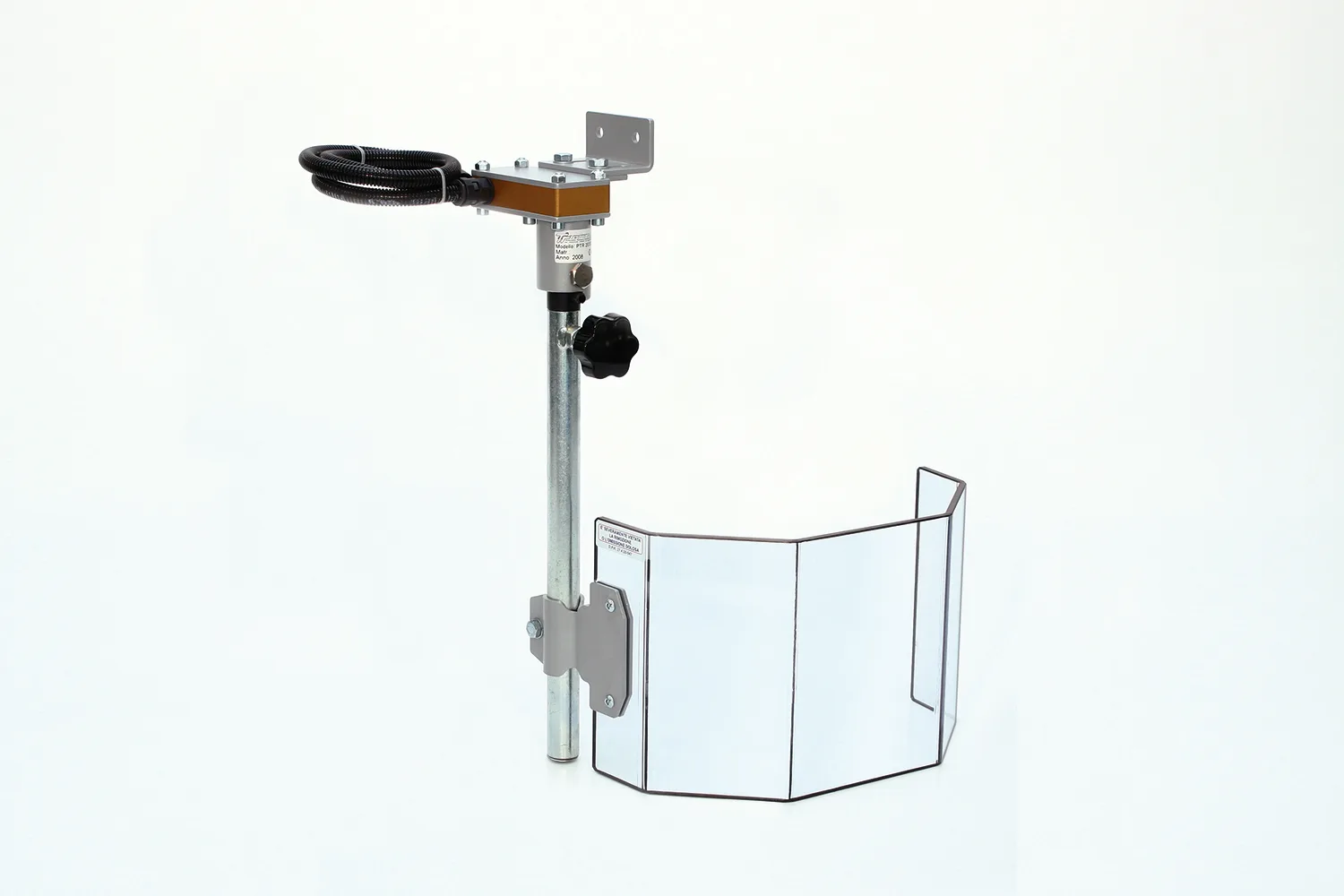

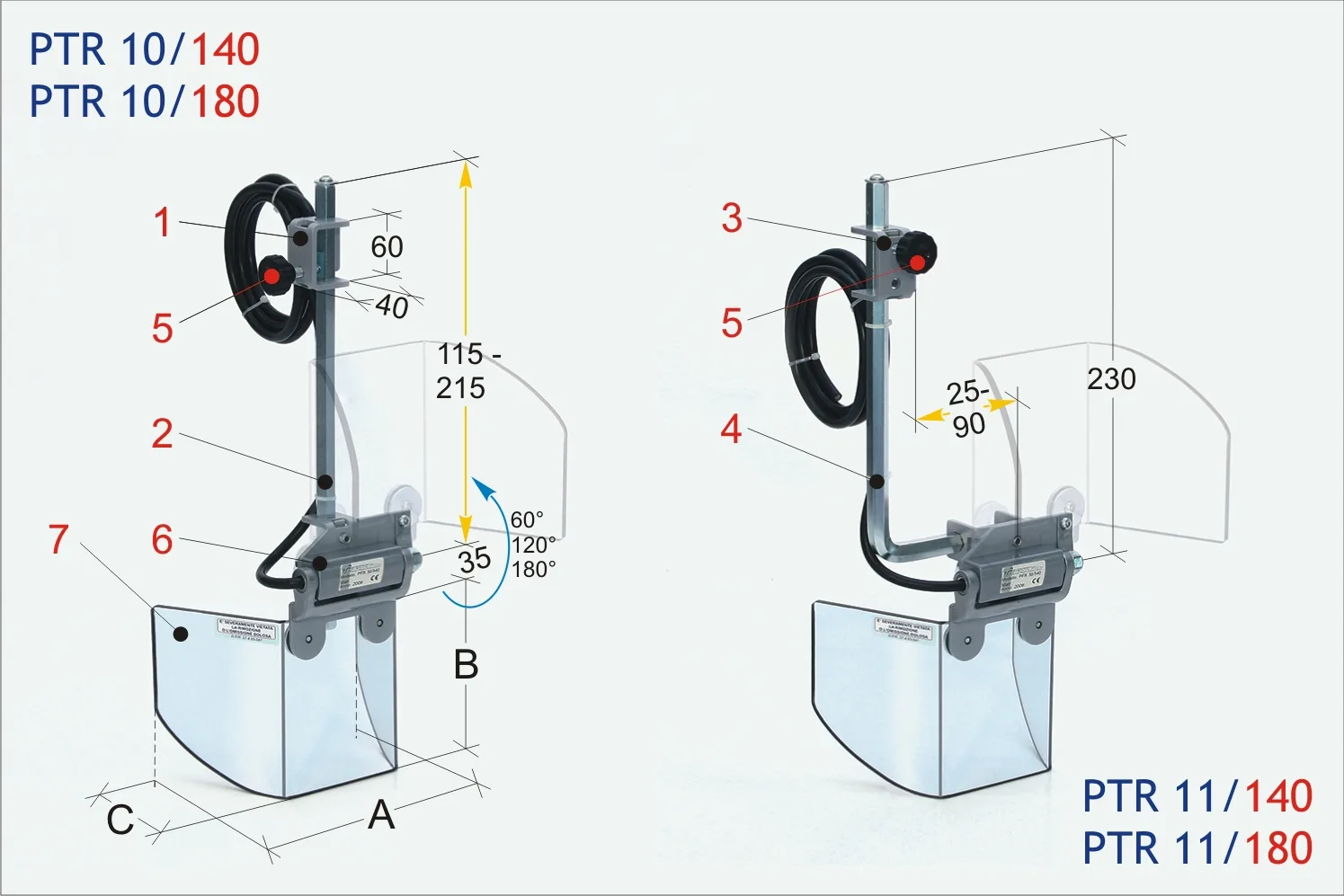

  1. Mounting brackets, frontal version – in pressed steel
  2. Support arm, frontal version – in steel hexagon
  3. Mounting brackets, lateral version – in pressed steel
  4. Support arm, lateral version – in steel hexagon
  5. Release knob for the vertical adjustment of the shield
  6. Shield support hinge, with integrated microswitch – n.2 NC contacts
  7. Semi-hexagonal shield in Polycarbonate
Clear
Size Guide
We also accept telephone orders - all major credit & debit cards accepted

Description

PUWER 98 Compliant drill guard for smaller drills

  • The PTR 10 and PTR 11 drill guard safeguard the machine operator from frontal contact with rotating parts and the projection of debris and coolant.
  • This is an operator friendly machine guard.
  • This drilling machine guard attaches to the front of the machine(see point 1 on Diagram).
  • The screen is height adjustable and opens vertically. The screen is made using top quality polycarbonate ensuring "Shock proof" resistance and excellent visibility.
  • This drill safety guard arrives complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • PUWER 98 compliant drilling machine guard.
  1. Mounting brackets, frontal version - in pressed steel
  2. Support arm, frontal version - in steel hexagon
  3. Mounting brackets, lateral version - in pressed steel
  4. Support arm, lateral version - in steel hexagon
  5. Release knob for the vertical adjustment of the shield
  6. Shield support hinge, with integrated microswitch - n.2 NC contacts
  7. Semi-hexagonal shield in Polycarbonate

Drilling Machine Guard PTR 10-11 Specifications

CODEABCPRICE
PTR 10/140 200140110£250.00
PTR 10/180 200180110£253.00
PTR 11/140200140110£265.00
PTR 11/180200180110£268.00
Drilling Machine Guard PTR 10 11
Downloads
  • PTR 10 & PTR 11 Drill Guard Spec
    Download

Delivery

Most of our products are available for despatch within 2-3 working days.

Some products are non-stocked items and will be subject to a longer lead-time, in which case we will contact you.

If in doubt, please call our office and speak to Catherine or Emily on 0121 603 1235
